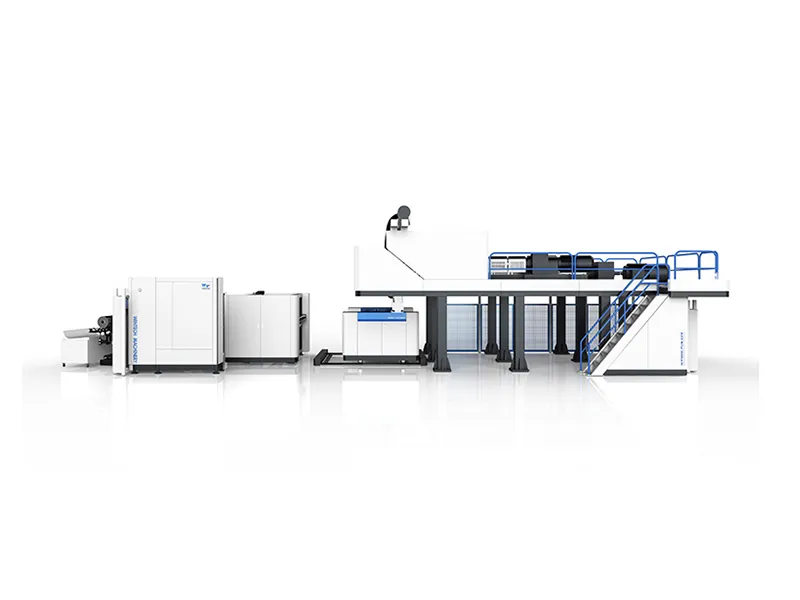

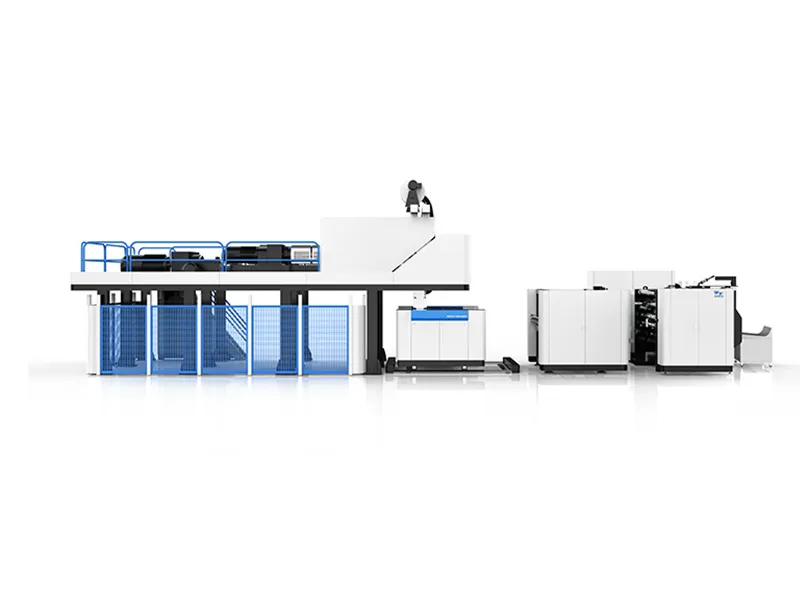

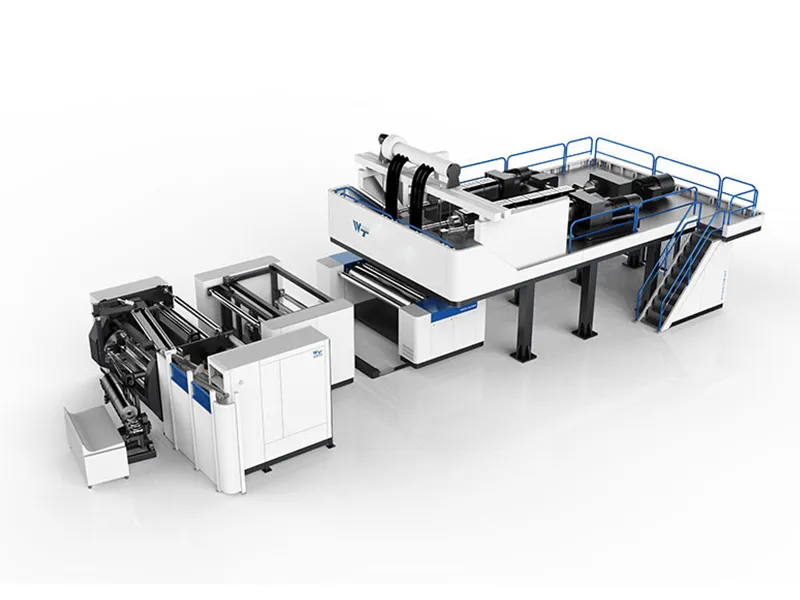

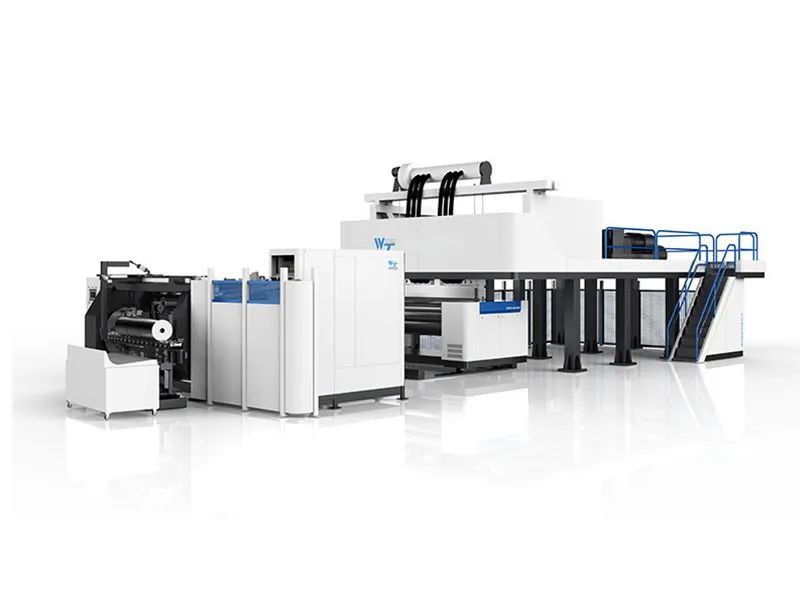

Four-Shafts Roll Change Automatic Cast Stretch Film Production Line

Our Four-Shafts Roll Change Automatic Cast Stretch Film Line ensures ultra-fast roll change, high capacity, and intelligent automation. With speeds up to 300 m/min and 400–500 kg/h output, it delivers premium stretch, cling, and silage films with efficiency, reliability, and minimal labor costs.

Key Features & Advantages of Four-Shafts Roll Change Automatic Cast Stretch Film Production Line


The Four-Shafts Roll Change Automatic Cast Stretch Film Production Line is designed for speed, efficiency, and versatility.


1. High Efficiency

Fully automatic four-shaft roll change in 1 second, high output of 400–500 kg/h, and speeds up to 300 m/min.


2. Superior Film Quality

Advanced screw plasticization, precise temperature control, and rapid cooling ensure high transparency, strength, and durability.


3. Smart Automation

Siemens PLC, one-button operation, and automatic core loading/unloading reduce labor needs.


4. Wide Applications

Capable of producing hand film, machine film, cling film, and silage film for diverse industries.


This machine boosts productivity while lowering costs and energy use.


Specifications of Four-Shafts Roll Change Automatic Cast Stretch Film Production Line

ModelWT-65/100/100/65*1850
Mold width1850MM
Diameter of screw65/100/100/65
LayerABCBD five layers or ABCD four layers
Motor22KW/90KW/90KW/22KW
Gear box173/280/280/173
Design line speed350m/min
Capacity580kg/h (10-12T)
Actual energy consumption: Energy consumption380-450 degrees/T
Total power436KW
Cooling roll (two strips) Cooling Roller1000mm*2000mm (main)
370mm*2000mm (pair)
Rewind rollerFour-axis servo winding
Four shaft servo winding
Machine size (reference value)15.5*6.5*5
Machine gross weight (reference value)35T
Suction machine Auto loader4 sets
Edge Recycling Machine Online recyding machine1 set
Static edge teaming device1 set
