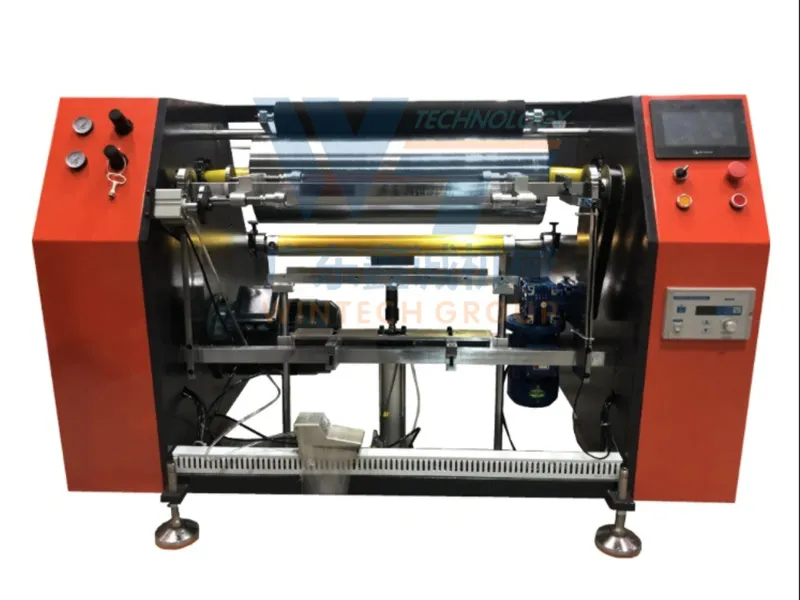

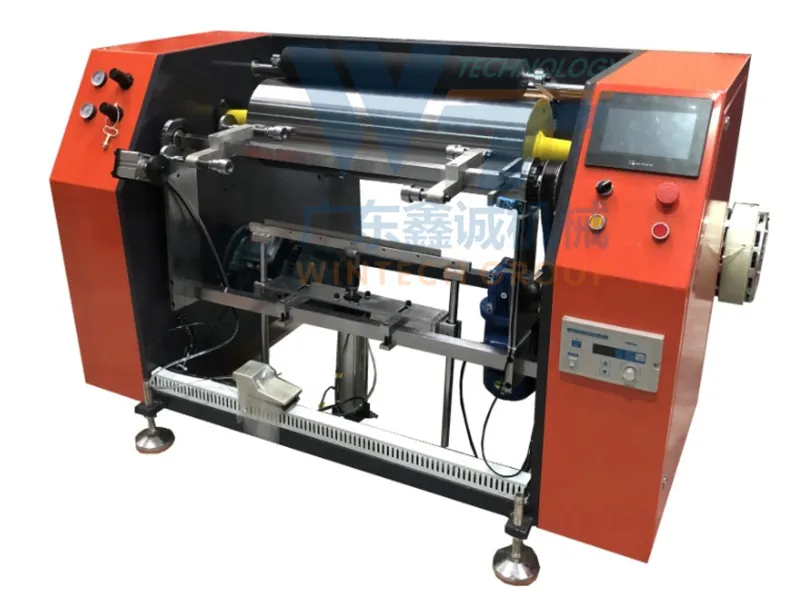

High Efficiency – Converts large aluminum foil rolls into smaller rolls quickly, with frequency-controlled speed up to 500m/min.
Smart Control – PLC with LCD touch screen, precise length counter, and tension control make operation simple and accurate.
Semi-Automatic Functions – Automatic rewinding, auto stop at set length, and automatic paper core replacement reduce labor needs.
Double-Station Design – Enables quick roll change, boosting productivity in continuous operations.
Wide Applications –This film rewinder machine is ideal for aluminum foil, kitchen foil, bread foil, catering rolls, PE and PVC food wraps.
| Model | WT-A600 |
| Jumbo roll width | 200-600mm |
| Material thickness | 7-50 micro |
| Jumbo roll outer diameter | 800mm |
| Jumbo core diameter | 76mm/3" |
| Rewinding core diameter | 35/40/45/50mm(option) |
| Rewinding roll length | 5-900m |
| Tension control torque | 100N.M |
| Speed | 300m/min |
| Change roll method | Manual |
| Total power | 2.2kw |
| Machine dimension | 1480×1300×1150mm |
| Weight | 750kg |
